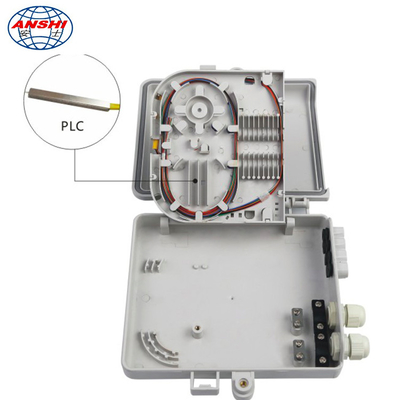

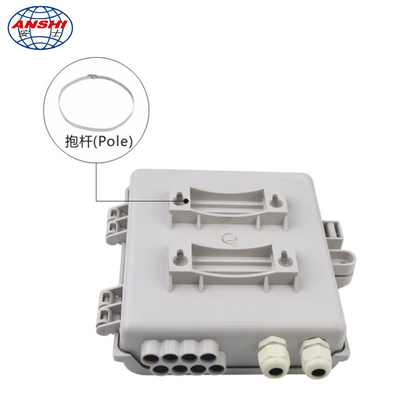

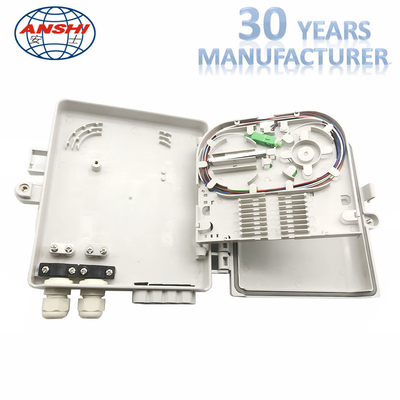

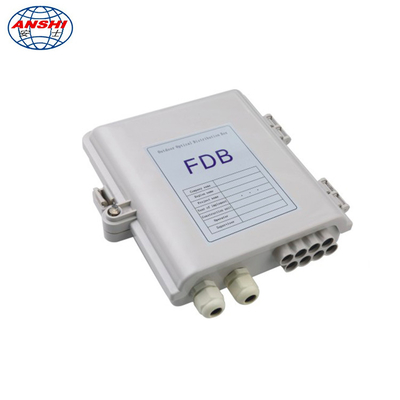

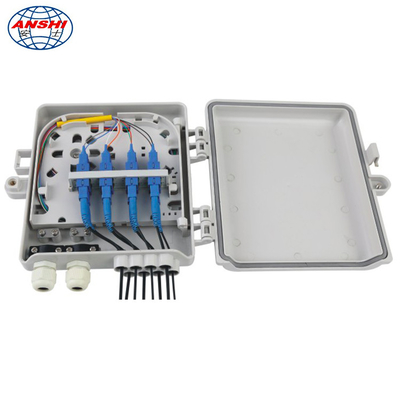

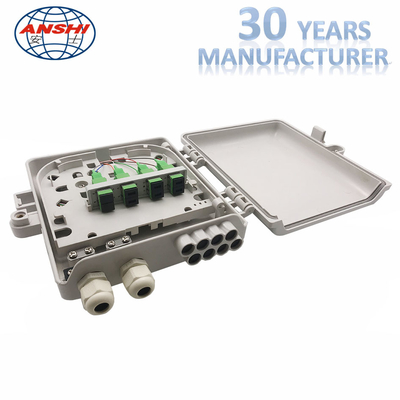

8 core Wall Mount Fiber Distribution Box with PLC splitter waterproof outdoor FAT Box
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
วอทส์แอพพ์:0086 18588475571
วีแชท: 0086 18588475571
สกายเป: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xproduct name | ftth distribution box | material | PC+ABS |
---|---|---|---|
protection grade | IP65 | install | wall mounting type and pole |
environment | outdoor or indoor | Dimension | 210*205*55 |
Sealing method | With key | function | waterproof |
capacity | 8 core SC | Application | FTTH system |
ไฮไลต์ | optical distribution box,fiber optic splitter box |
8 core Wall Mount Fiber Distribution Box with PLC splitter waterproof outdoor FAT Box
Production Description
Fiber optic distribution box is used for the distribution connection of cable and fiber optic communication
devices. It leads out optic signal from drop cable to pigtails by splicing in the box. It can be used for protective
connection of cable and layout pigtails, and fiber optic termination of fiber access network. It is suitable for
outdoor, corridor, weak current silo or connection points of vilas, for the splicing, storage and distribution of
local cable or drop cable, with capacity of 8 cores.
Feature
- ABS material used ensures the body strong and light.
- Water-proof design for outdoor uses.
- Easy installations: Ready for wall mount – installation kits provided.
- Adapter slots used – No screws and tools needed for installing adapters.
- Ready for splitters: designed space for adding splitters.
- Space saving! Double-layer design for easier installation and maintenances:
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Protection Level: IP65.
- Accommodates both cable glands as well as tie-wraps
- Lock provided for extra security
Technical Parameter
Working temperature: -20°C~+60°C
Relative humidity: ≤90%(+30℃)
Atmosphere pressure:62-106Kpa
Insertion Loss:lL ≤0.3dB(PC), 1L ≤0.3dB(APC)
Return Loss: PL≥40dB(PC), RL≥50dB(UPC), RL≥60dB(APC)
Accessories
Splice cassette and cable management tools, installation nuts and bolts,
heat shrinking tube, rubber seal, hose clamp.
Application
FTTH, FTTB, FTTC
Telecommunication Network
Local Area Network
CATV
