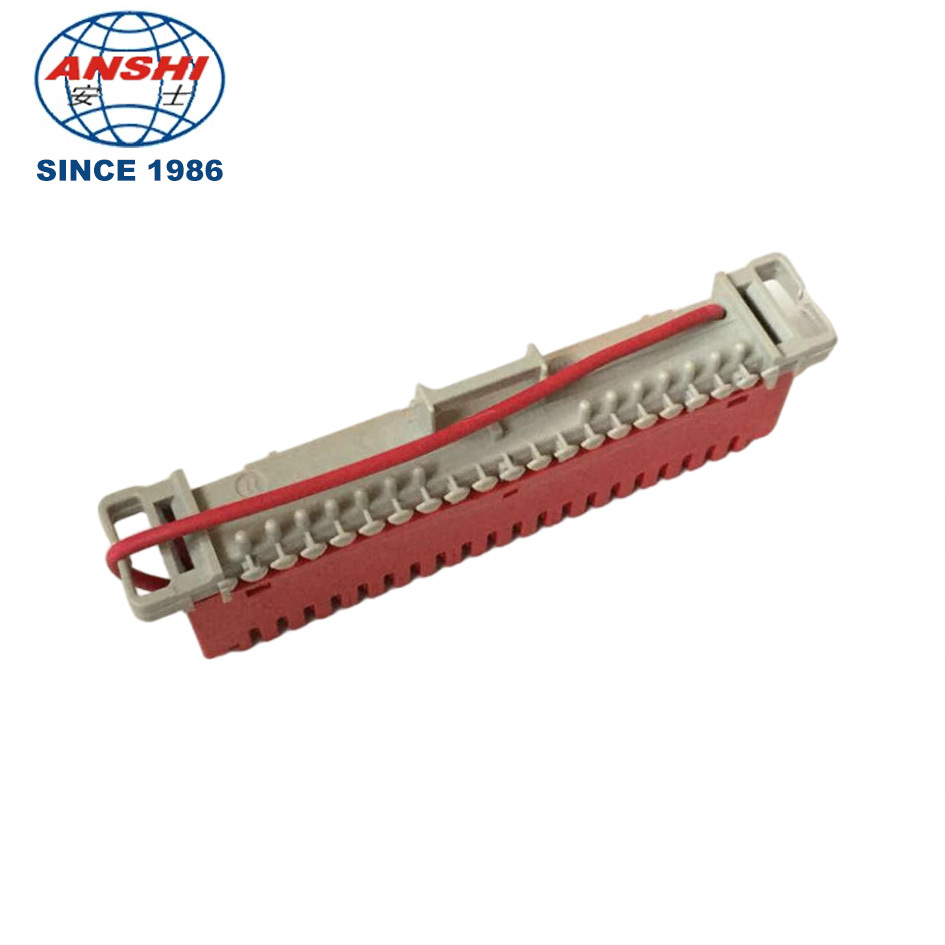

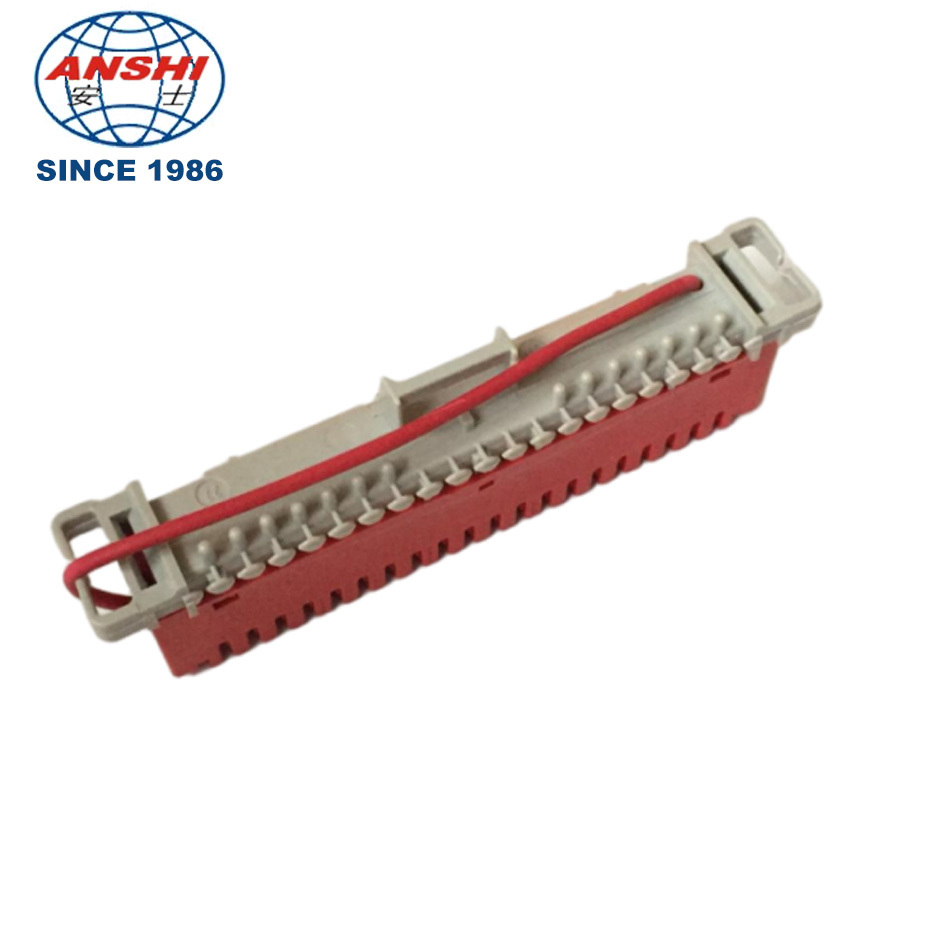

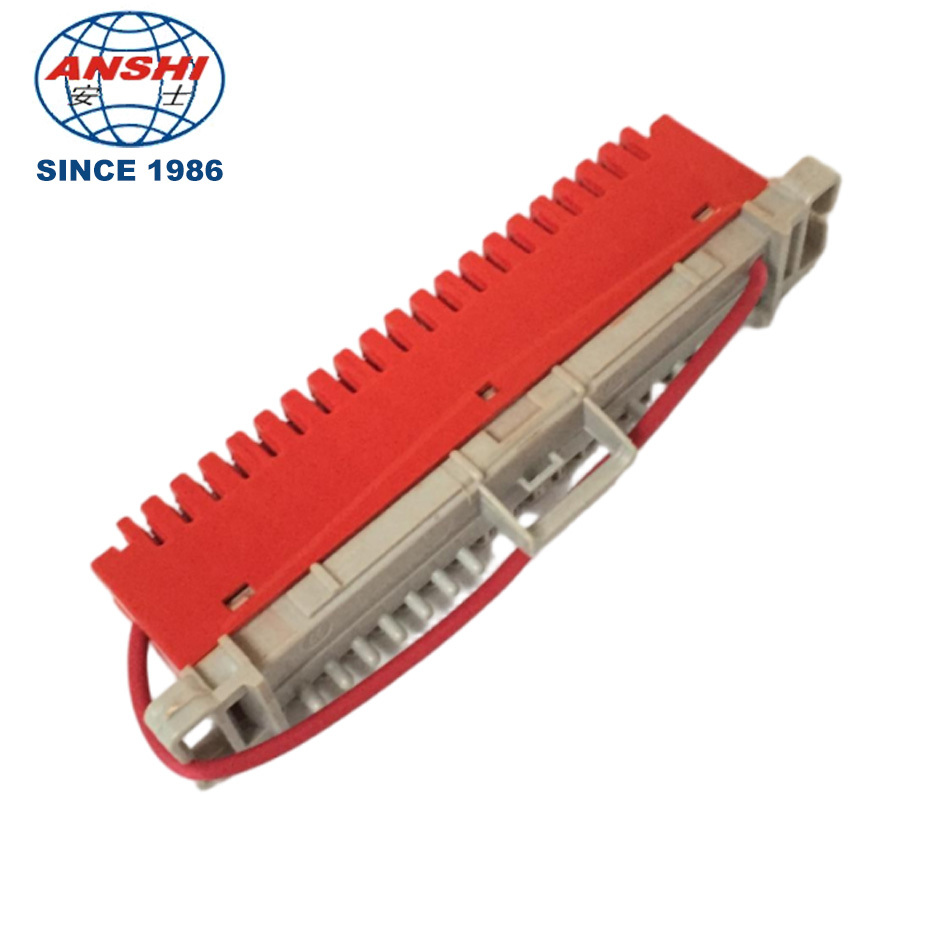

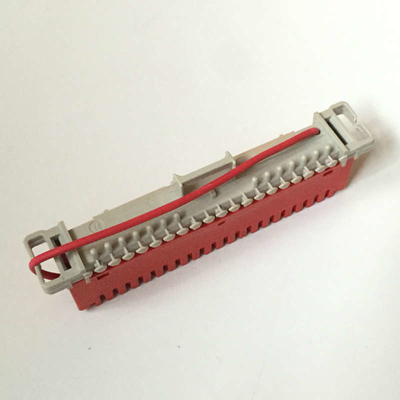

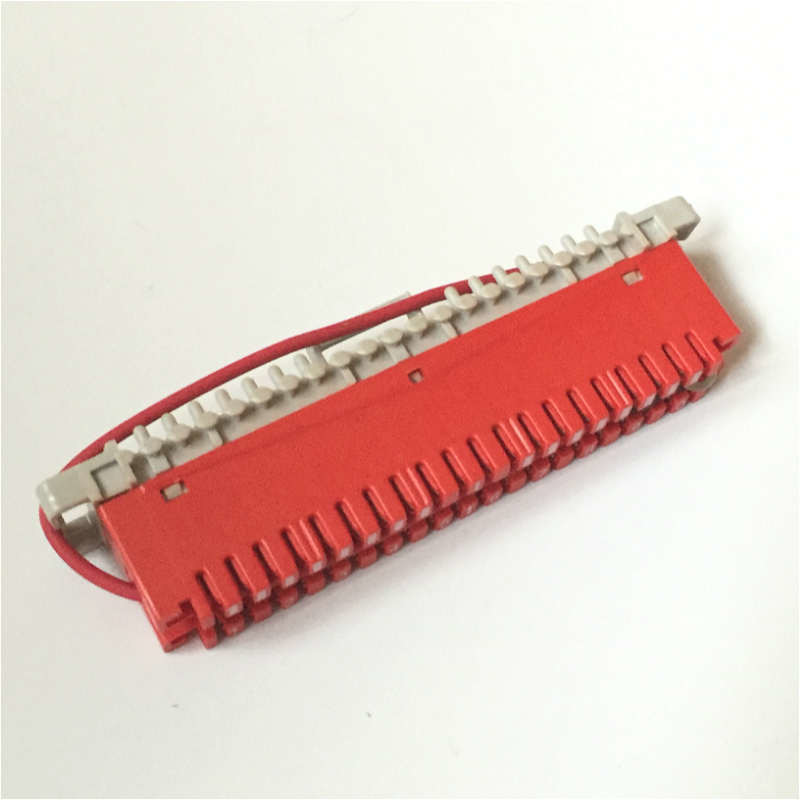

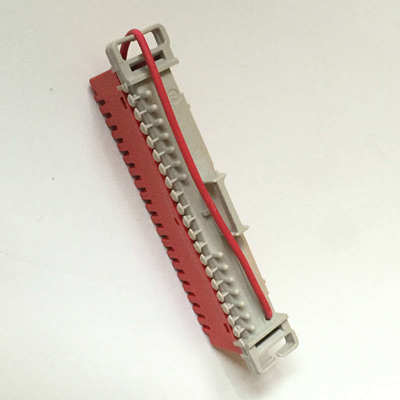

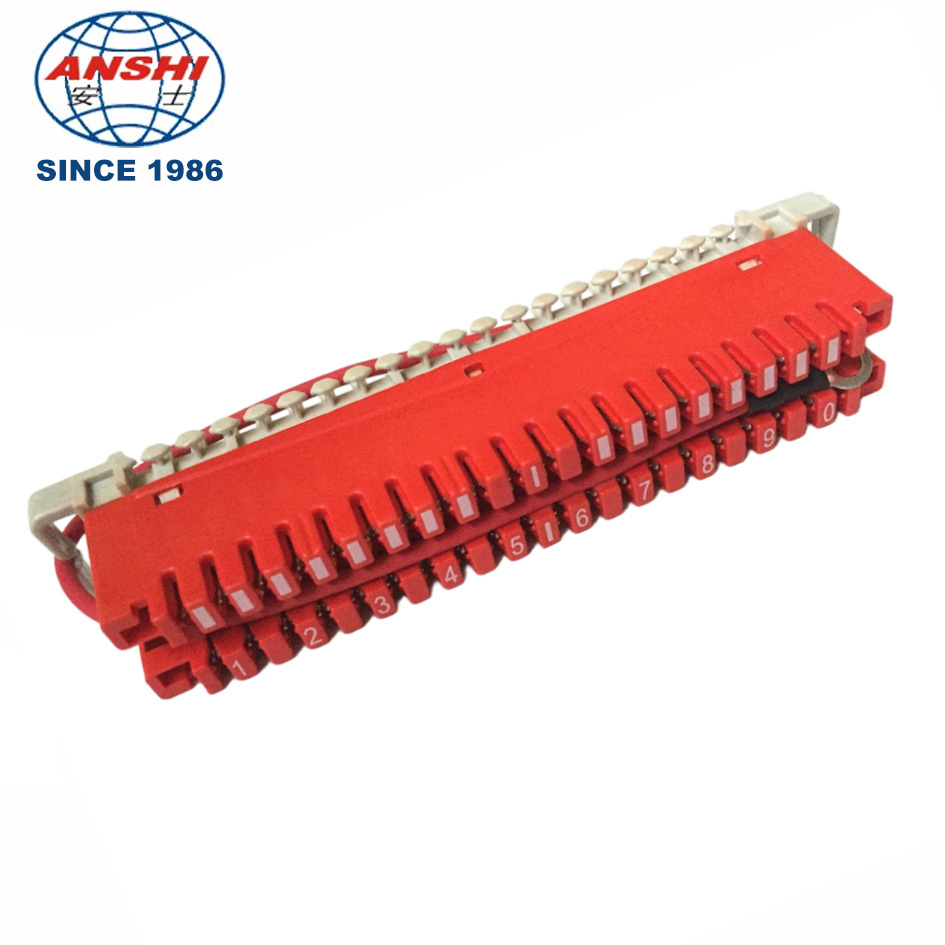

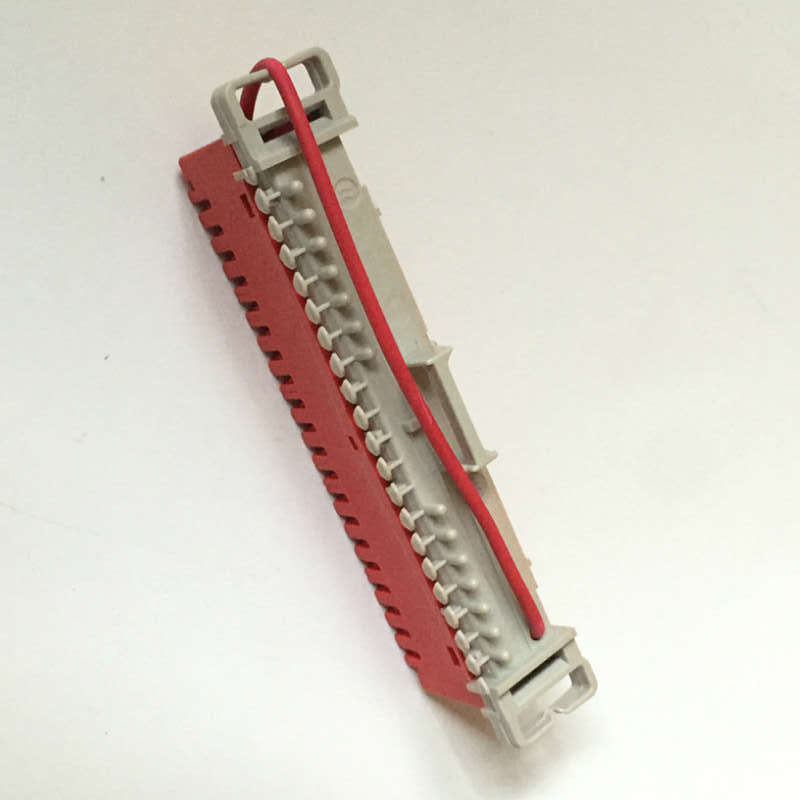

ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication

ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication

    • ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
    • ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
    • ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
    • ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
  • ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication

    รายละเอียดสินค้า:

    Place of Origin: ZHEJIANG, CHINA
    ชื่อแบรนด์: ANSHI
    ได้รับการรับรอง: ISO9001, CNACL, SGS, DAS
    Model Number: XL-011

    การชำระเงิน:

    Minimum Order Quantity: 100 pcs
    ราคา: Negotiable
    Packaging Details: CARTON:53*24*24CM
    Supply Ability: 10000 pcs per week
    ติดต่อตอนนี้
    รายละเอียดสินค้า
    Material: ABS or PBT Color: Red and Grey
    Type: Disconnection Contact: Phosphor bronze with silver coating
    Application: Telecommunication Protection Level: UL-94VO

    ABS or PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication





    Quick Detail:



    1. Material: PBT or ABS(UL94V-0)

    2. Contact: Phosphor Bronze

    3. Silver Plating: 0.5 um1.25 um5 um

    4. Can be installed on krone type stainless steel back mount frames

    5. Available with 50pair block tag and 100pair block tag.

    6. for mounting on MDF,racks,profile bracket,indoor and outdoor distribution box,cross connection cabinets.



    2 types:

    1.Clamp

    2. Orbit



    Applications:



    High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.





    Specifications :



    Mechanical Performance Insertion force : 40~75N
    Pull Out Force : F≥25N(axial) F≥7.5N(radial)
    IDC Life : 200 times(20-26 AWG Solid wire) minimum
    Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
    Environment Characteristic Storage Tempreture: 40 to 70°C
    Operating Temperature : 10 to 60°C
    Relative Humidity: 95%, noncondition
    Electrical Performance Insulation resistance: 1000 Mohms minimum
    Contact resistance :7 mohms maximum

    Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s





    Why you choose us:

    1. 30 years manufactory experience

    2. OEM/ODM available

    3. Steady product quality

    4. Strict quality control

    5. Strictly conform to CE,ROHS,UL certificate

    6. Quick delivery time



    ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication

    Disconnection Contact:



    S2 Disconnection modules use a two piece contact (normally closed), with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test Cord can be inserted into a pair to test each side (look both ways) of the circuit independently. This greayly accelerates fault identification. The centre contact point can also be used for monitoring or over voltage protection.


    ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication



    Connection Contact:



    Connection Modules have a one piece contact providing a continuous link between permanent wiring and jumper wiring, giving provision for monitoring access and overvoltage protection.


    ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication



    Switching Contact:



    Switching Modules house individual contacts and hence the circuits are disconnected when

    idle. By inserting plugs, cords or over voltage protection, the circuits can be connected when

    necessary.




    ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
