|Place of Origin:||China|
|Minimum Order Quantity:||50|
|name:||Fiber Optic Junction Box||connector type:||SC/FC/ST/LC|
|Protection level:||IP55||Port:||3 ports for in&out|

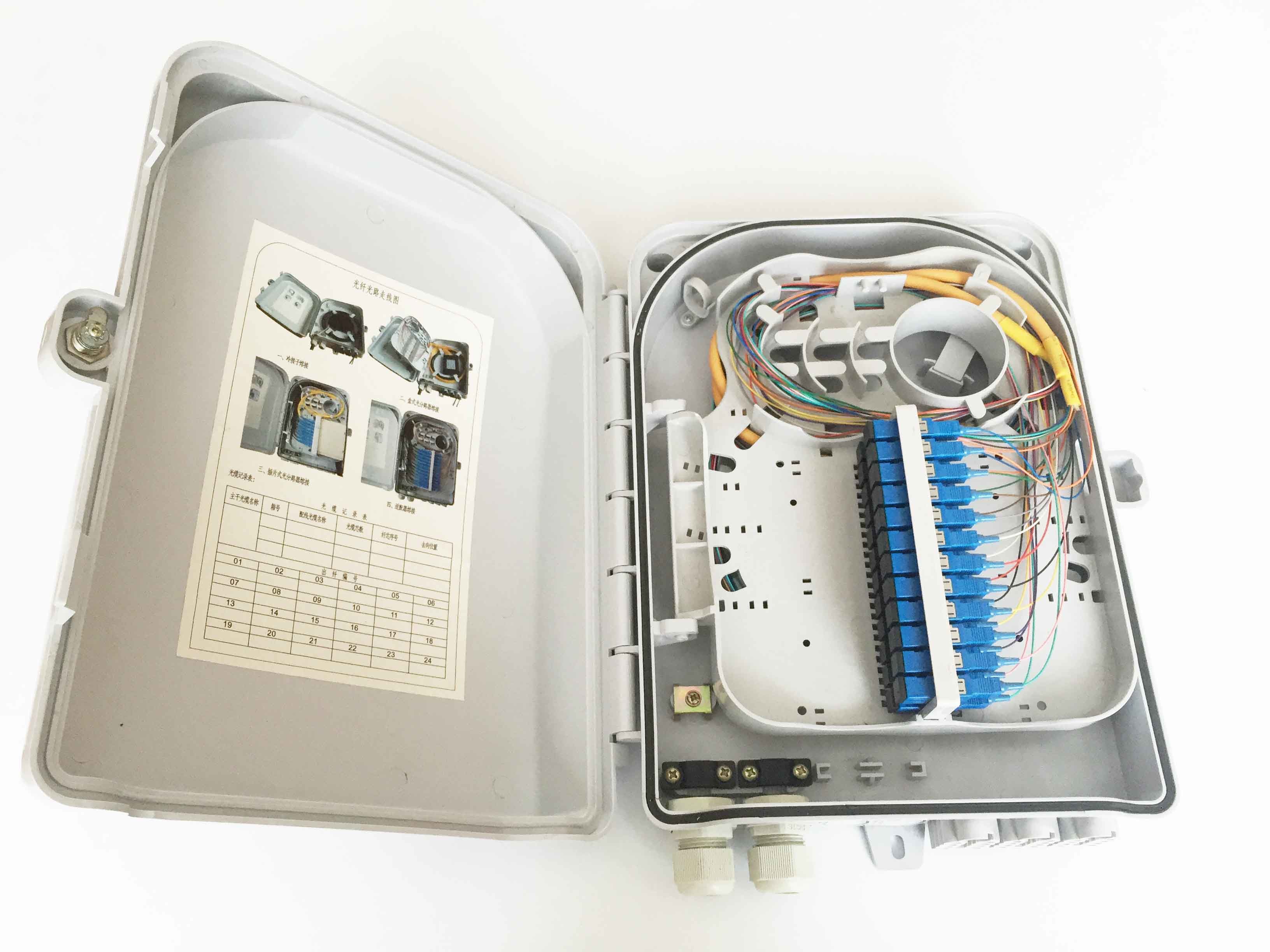

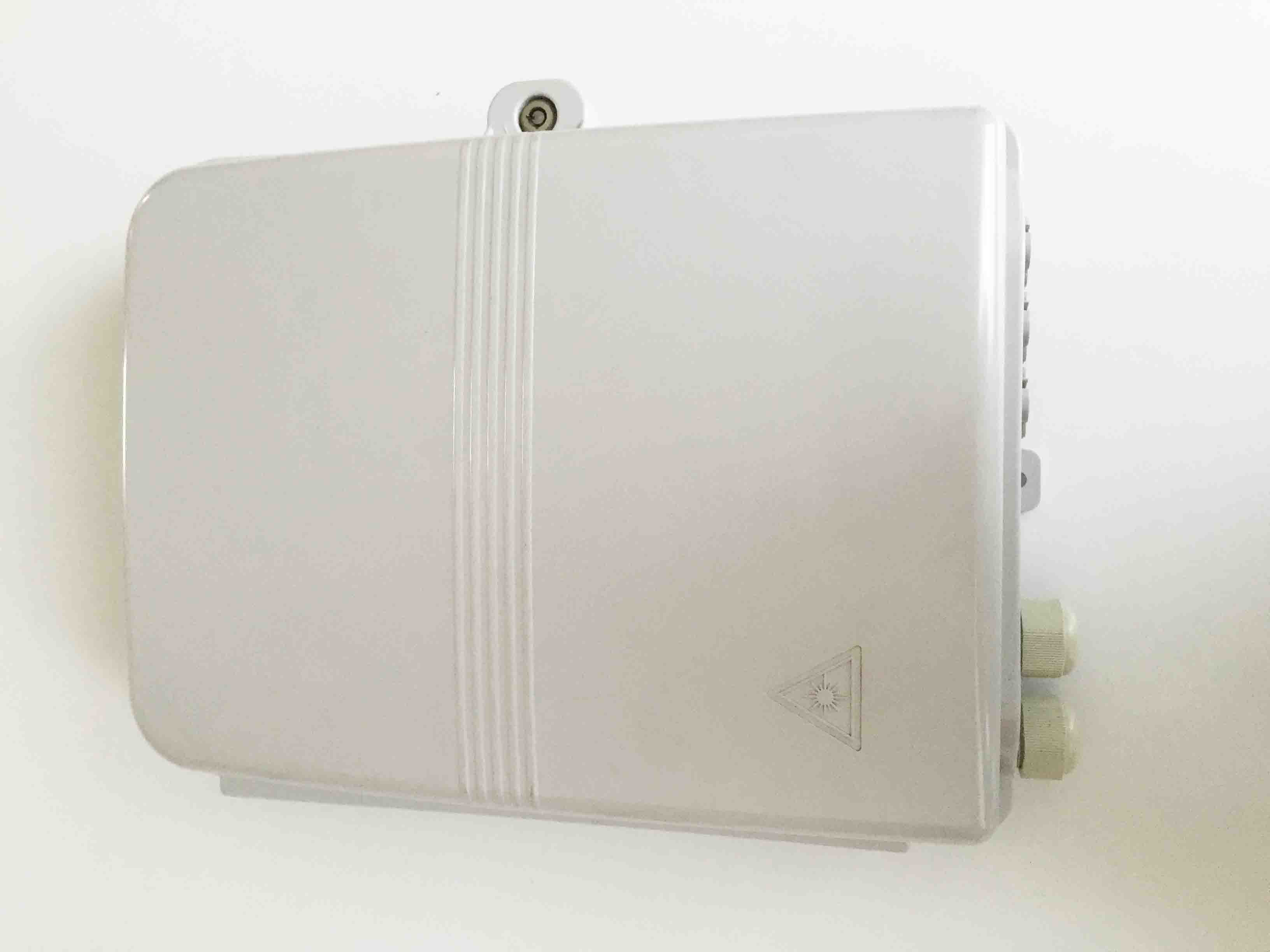

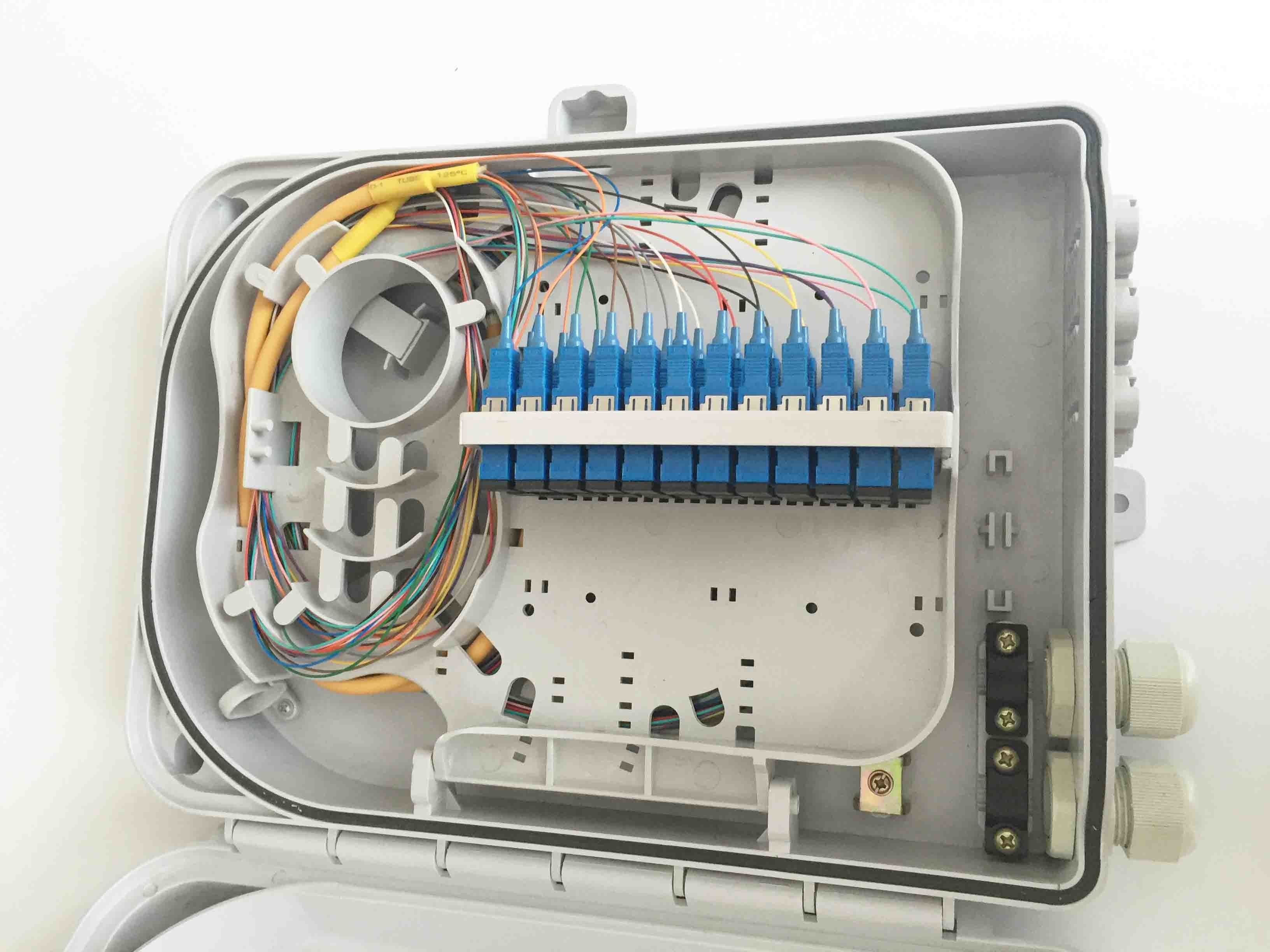

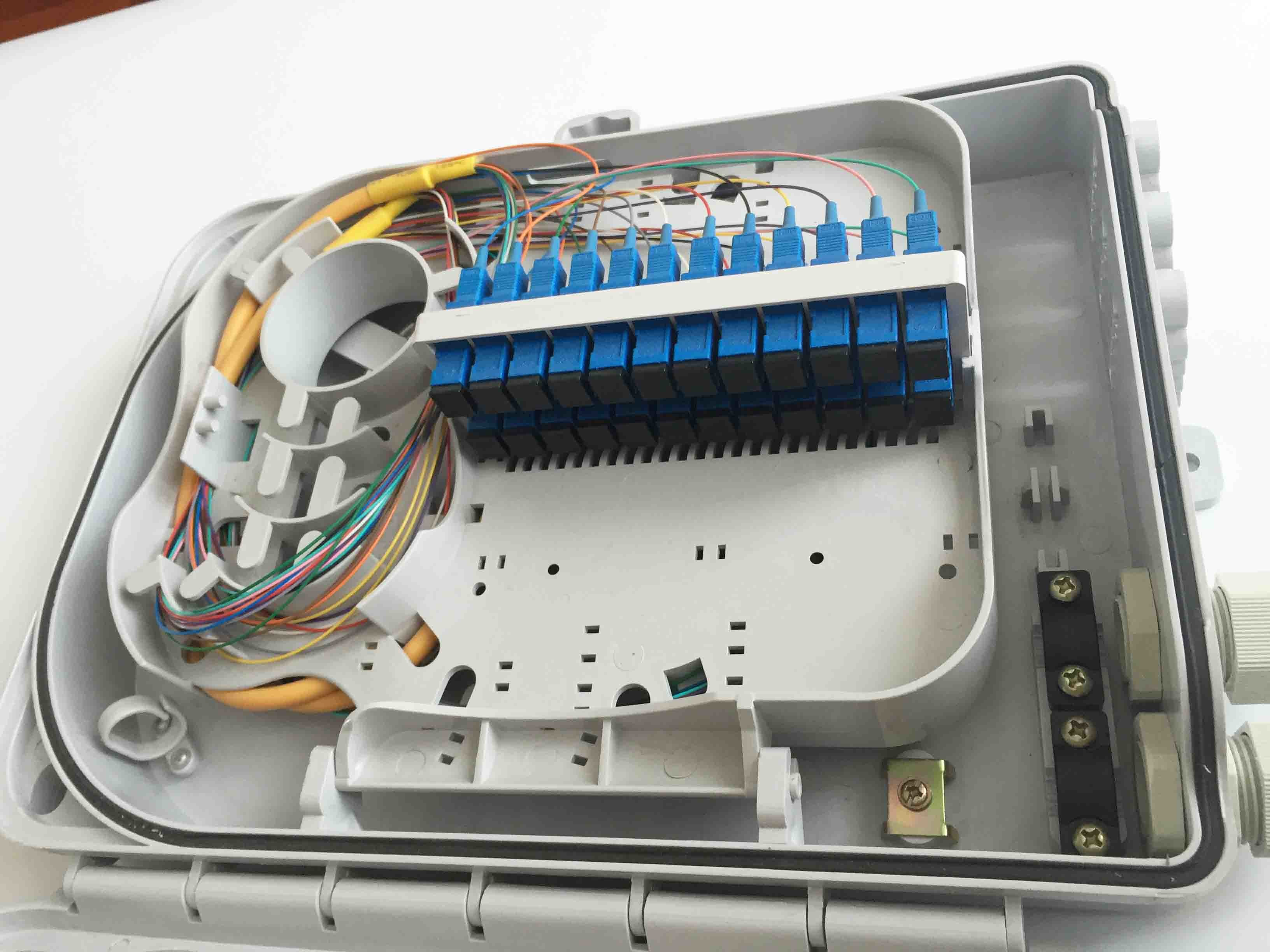

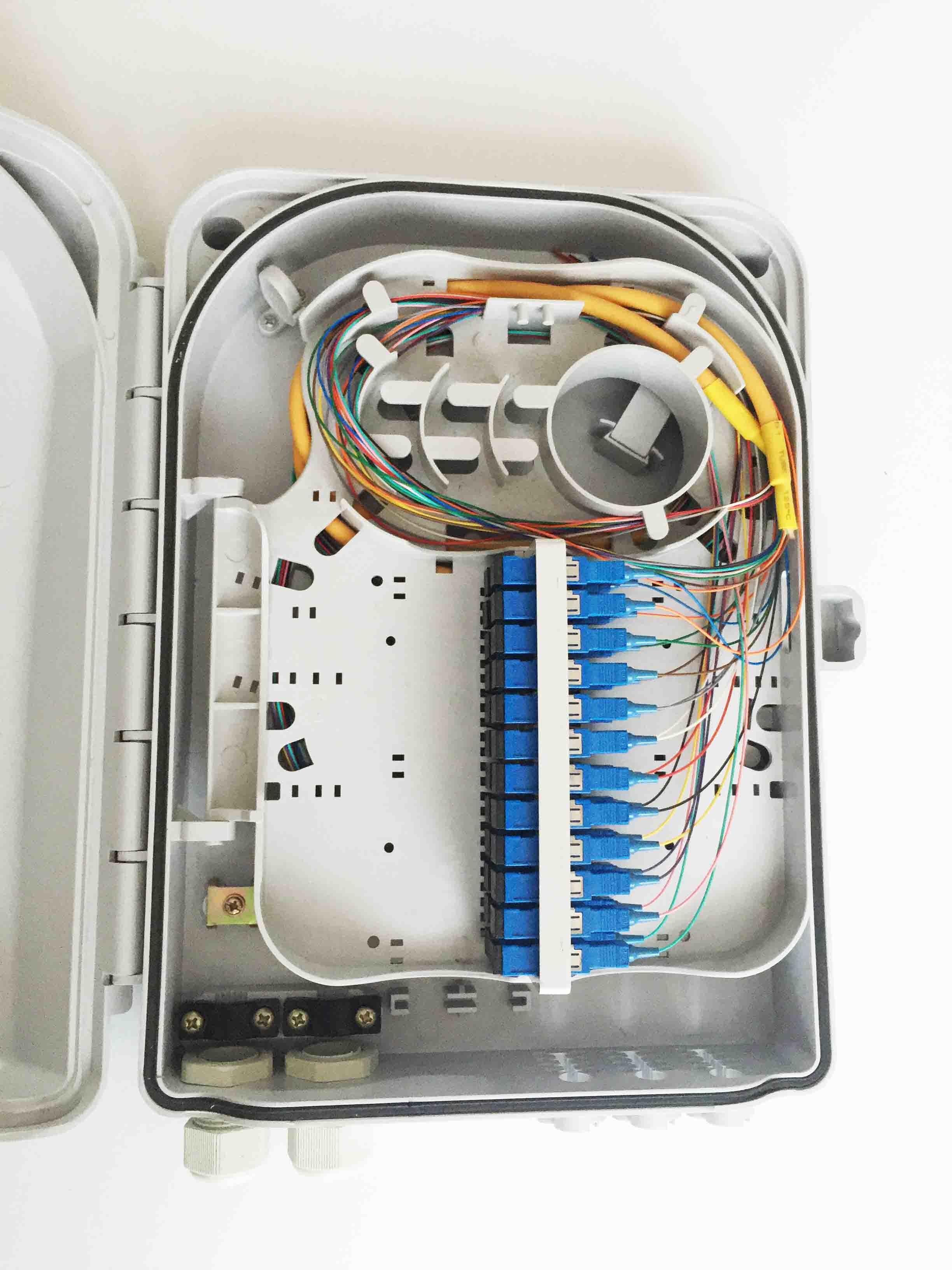

Termination Box, 24 Cores FTTH Fiber Optic Outdoor Distribution Box, IP55, Wall mount Type and Pole
Indoor Wall moun Fiber Optic Junction Box/Enclosure can manage both single fiber and ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.
1. With cold-roll steel box, splicing unit, distribution unit and panel
2. Various panel plate to fit different adapter interface
3. Adapters can be installed: FC, SC, ST, LC
4. Suitable for single fiber and ribbon & bundle fiber cables
5. Special design ensures the excess fiber cords and pigtails in good order
6. No interval and easy for management and operation
What is terminal box?
Fiber Optic Terminal box is used in wiring connection between optical cable and optical communication equipment, through adapers in terminal box, optical fiber jumper leads optical signal, realize optical wiring function, and can meet the optical splitter placed to acheive spectral function. FIber Optic Terminal Box is especially for connecting and protection for fiber cable for FTTH. This terminal box applies to the communcation room and various network room wall installation or desktop installation.
1. cross connection cabinet Widely used in FTTH (Fiber To the Home) access network.
2. Telecommunication Networks
3. CATV Networks
4. Data communications Networks
5. Local Area Networks
6. Suitable for Telekom UniFi.
